EWC RFC013: Issue Photo ID - v2.0

Authors:

Reviewers:

Status: Approved

Copyright © 2025 All Rights Reserved
Published under a Creative Commons Attribution 4.0 International License

Table of Contents

1.0 Summary

This specification defines the implementation of the “Photo ID profile” defined in Annex C of ISO/IEC TS 23220-4, in mdoc and SD-JWT. The attestation issued is derived from an electronic Machine-Readable Travel Document (eMRTD) by a Qualified Trust Service Provider (QTSP).

The issuance process includes verifying the identity of the subject using eID means issued with a high Level of Assurance (LoA High), such as a Personal ID (PID) credential, or alternatively conducting an unnattended remote identity proofing using identity documents. The issuance follows the OpenID4VC framework, ensuring interoperability with EUDI Wallets.

Key Benefits:

2.0 Motivation

2.1 The need of a photo ID

The need for a photo ID arises from the limitations of the current Personal ID (PID) issued within the European Digital Identity Wallet (EUDI Wallet) ecosystem. Specifically, PIDs may not always include a photo, which is a required attribute in certain use cases where biometric verification is necessary or a physical presence of the individual is required.

Furthermore, some use cases, such as traveling, require specific documentation (e.g., passport) that includes a document number, which is not included in the PID schema. Therefore, a separate photo ID attestation is necessary to fulfill these requirements.

2.1.1 Use cases: registration and communication of information in hospitality and short-term accommodation in Spain (Real Decreto 933/2021)

RD 933/2021 is a national regulation aimed at improving public security by obliging accommodation providers (like hotels, hostels, vacation rentals, and vehicle rentals) to collect and share data on their guests or users with law enforcement authorities.

Real Decreto 933/2021 specifies that for traveller registration, the identification document provided must be an official, recognized form of ID. Accepted documents include:

2.2 ISO/IEC TS 23220 and Photo ID Issuance Process

The ISO/IEC TS 23220 series provides a comprehensive framework for identity management via mobile devices. Specifically, in ISO/IEC TS 23220-2, the standard outlines the data model and encoding rules required for generic eID systems, which forms the foundation for our Photo ID implementation.

Section 5 of ISO/IEC TS 23220-2 describes the identity data collection and confirmation process, highlighting how “ID documents are issued by binding an applicant with a real-life identity.” The standard emphasizes that “an issuer collects evidence to verify the attributes provided by the applicant, and this process is called identity proofing.” This corresponds directly to the identity verification procedures an issuer will perform when issuing Photo ID attestations.

identity-data-collection-and-issuance

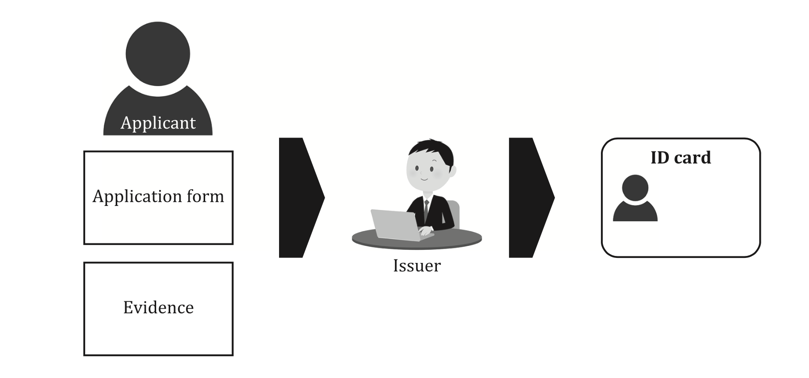

ISO/IEC TS 23220-2 Figure 1 illustrates the issuing process of an eID document, showing how an applicant provides an application form and evidence (such as ID cards issued by an Authority) to the issuer. The issuer then collects other evidence if needed, proves the applicant’s identity, binds that identity with the holder, and confirms the applicant through photo ID or by person of authority.

Furthermore, Section 6 of ISO/IEC TS 23220-2 defines the data model specification that photo ID profile is based on (Section 6.3) which includes the data elements that express attributes for describing a natural person, including crucial elements like family name, given names, date of birth, portrait, and biometric templates.

Finally, Annex C of ISO/IEC TS 23220-4 describes the photo ID profile, including data elements as defined in ISO/IEC 23220-2 and specific ones under the namespace org.iso.23220.photoid.1 and org.iso.23220.dtc.1 (see Schema definition).

2.3 ETSI TS 119 461 and Identity Proofing Requirements

The identity proofing and verification procedures mentioned above are further elaborated and standardized in ETSI TS 119 461, which specifies “policy and security requirements for trust service components providing identity proofing of trust service subjects.” This standard is particularly relevant to our implementation as it defines the requirements for identity proofing at two levels: Baseline and Extended Level of Identity Proofing (LoIP).

The Baseline level of assurance is sufficient for use cases where the risk of identity fraud is low, such as online services that require a basic level of identity verification. In contrast, the Extended level of assurance could be required for use cases where the risk of identity fraud is higher, such as online services that require a high level of identity verification, or where the user is requesting access to sensitive information.

Section 9 of ETSI TS 119 461 defines various use cases for identity proofing, including:

In our implementation, the passport validation step described in Section 4.2.4 of this RFC will follow the unattended remote identity proofing requirements specified in Section 9.2.3 of ETSI TS 119 461. This includes requirements related to automated validation of digital identity documents (VAL-8.3.2 requirements) and binding to applicant by automated face biometrics (BIN-8.4.3 requirements).

By adhering to both the ISO/IEC TS 23220 data model and the ETSI TS 119 461 identity proofing requirements, the Photo ID issuance process ensures a high level of interoperability within the European identity ecosystem.

3.0 Scope

We consider 2 possible scenarios when issuing a Photo ID attestation:

  1. The Issuer, a public sector body that is responsible for the authentic source or a public sector body that is designated by the Member State, directly issues a photo ID credential. This Issuance Authority performs the required identity proofing before issuing the attestation to the citizen (this might include remote identity proofing, authentication using PID or in-person verification). This would be the scenario of an Electronic attestation of attributes issued by or on behalf of a public sector body (PuB-EAA).

  2. Issuer requests the required data from the citizen at the moment of issuing the photo ID attestation. In this case the Issuer (e.g. a QTSP) performs the required identity verification before issuing the attestation to the citizen. This would be the scenario of a Qualified Electronic Attestation of Attributes (QEAA).

In this RFC we will be focusing on the scenario 2).

4.0 Pre-requisites

4.1 Photo ID as a EAA

For the scope of this RFC we are considering PhotoIDs as QEAAs.

4.2 Photo ID as a QEAA

Besides the requirements laid down in Annex V of Regulation (EU) 2024/1183, when issuing a QEAA, the following requirements must be met:

Annex C of the ETSI TS 119 461 specifies requirements for identity proofing targeted explicitly to fulfil requirements of the amended eIDAS regulation for issuing of qualified certificates and qualified electronic attestation of attributes.

In this RFC, 2 identity proofing use cases (of the Annex C.3 - Use cases for issuing of QEAA) are considered:

5.0 Issuance Flow

The issuance process follows OpenID4VCI Authorisation Code flow as described in the EWC RFC001: Issue Verifiable Credential - v2.0, and extends it by implementing Dynamic Credential Request (OpenID4VCI draft 13), ensuring a standardized method for credential issuance.

It follows the OpenID4VC High Assurance Interop profile, where it is recommended that the Credential Issuer and the Wallet MUST support the authorization code flow. So no pre-authorized code flow is used.

High-level flow diagram.

This diagram provides a high-level overview of the credential issuance process, highlighting the main steps involved.

sequenceDiagram
    participant Wallet as EUDI Wallet
    participant Issuer as PhotoId Issuer(QTSP)
    participant Scanner as Passport Scanner App

    Note over Wallet, Issuer: Setup
    Wallet->>Issuer: Discover Request
    Issuer-->>Wallet: Discover Response
    Note over Wallet, Issuer: Issuance request (OpenID4VCI)
    Wallet->>+Issuer: Auth Request

    alt Opt 1: With PID authentication
        Note over Wallet,Issuer: Dynamic credential request: 1) PID
        Issuer->>Wallet: Request PID
        Wallet-->>Issuer: Present PID
        Issuer->>Issuer: Check if PID is valid

        Note over Scanner,Issuer: Dynamic credential request: <br> 2) Passport
        Issuer->>Scanner: Passport scan
        Scanner-->>Issuer: Passport data
        Issuer->>Issuer: Match data with PID presentation
    else Opt 2: Unattended Remote ID Proofing
        Note over Issuer,Scanner: Dynamic credential request: <br> Unattended remote ID proofing
        Issuer->>+Scanner: Passport scan
        Scanner->>Scanner: Biometric and liveness check
        Scanner-->>-Issuer: Passport data + ID proof
    end

    Issuer-->>-Wallet: Auth Response
    Note over Issuer,Wallet: Complete Issuance
    Wallet->>+Issuer: Credential Request
    Issuer-->>-Wallet: Credential Response

5.1 Actors

Actor Description
EUDI Wallet The user’s digital wallet storing credentials.
PhotoID Issuer - QTSP A Qualified Trust Service Provider (QTSP) issuing the attestations.
Passport Scanner App The app used to scan the user’s passport and extract relevant data.

5.2 Flow Details

5.2.1. Setup Phase

Before any attestations are issued, the EUDI Wallet (W) and the PhotoID Issuer (IS) establish a connection.

The Wallet and Issuer exchange metadata to establish connection endpoints and cryptographic parameters necessary for secure communication. This typically includes OpenID discovery mechanisms.

5.2.2. Credential Issuance Request (OpenID4VCI)

The issuance process starts when the user (UA) scans an OpenID4VCI credential offer QR or clicks on a deeplink. Wallet will invoke UA (User Agent) to send Authorisation Request to the Authorization Server (QTSP ISSUER).

After receiving Authorisation Request the IS (PhotoID Issuer - QTSP) will start the dynamic credential request to obtain the required data ( PID and Passport) to obtain PhotoID attestation.

Dynamic credential request will consist of two steps, described in the following sections.

5.2.3. Dynamic Credential Request – Option A: ID proofing with PID

Step 1: User authentication with PID

First steps will use OPENID4VP – as described in EWC RFC002: Present Verifiable Credentials - v1.0 to request and verify the user’s PID.

Step 2: Passport attributes Validation

After PID validation, the second step of the Dynamic Credential Request should trigger a flow to obtain Passport data.

It is out of the scope of this document to describe the details of the passport reading process, but we expect the flow to be close to some OAuth2-based flow.

If using OAuth2 authorization code flow, the user would be redirected to a Passport Reading Service application and prompted to scan their Passport alongside additional biometric checks to ensure the holder of the physical document is managing the application. Finally, the user would grant permission to share Passport data with the issuer.

5.2.4. Dynamic Credential Request - Option B: Unattended remote ID Proofing using eMRTD

This step is analogous to the previous step, but in this case the id proofing process should include the unattended remote identity proofing requirements specified in Section 9.2.3 of ETSI TS 119 461.

5.2.5. Credential Issuance Completion

Issuer performs an attribute-based verification to ensure PID data corresponds and matches a subset of the Passport’s claims. Once identity is verified, the attestation is issued and sealed.

6.0 Electronic Attestation Type

The attestation is issued in one of the follows:

7.0 Schema definition

7.1. ISO 23220 - Photo ID Data model

Credential Type / DocType for PhotoID

Format attribute Description
mDOC DocType eu.europa.ec.eudi.photoid.1
SD-JWT vct eu.europa.ec.eudi.photoid.1

Top-Level Attributes / mDOC namespaces

SD-JWT Attribute mDOC namespace Required/Optional Description
iso23220 org.iso.23220.1 Required ISO/IEC 23220-1 claims
photoid org.iso.23220.photoid.1 Required PhotoId claims
dtc org.iso.23220.dtc.1 Optional DTC

org.iso.23220.1 data elements

Attribute Required/Optional Description
family_name_unicode Required Unicode-encoded family name of the document holder.
given_name_unicode Required Unicode-encoded first name of the document holder.
birth_date Required Date of birth in ISO 8601 format.
portrait Required A portrait image encoded as a Data URI.
issue_date Required Date when the document was issued.
expiry_date Required The date when the document expires.
issuing_authority_unicode Required The authority responsible for issuing the document.
issuing_country Required The country issuing the document.
sex Optional Holder’s sex using ISO/IEC 5218. 0=Unknown, 1=Male, 2=Female, 9=Not applicable
nationality Optional Nationality (ISO 3166-1 alpha-2 or alpha-3 code).
document_number Optional Unique number identifying the document.
name_at_birth Optional The name of the individual at birth.
birthplace Optional Place of birth (country and city/state).
portrait_capture_date Optional Date when the portrait was taken.
resident_address_unicode Optional Unicode-encoded resident address.
resident_city_unicode Optional Unicode-encoded city of residence.
resident_postal_code Optional Postal code of the residence.
resident_country Optional Country of residence.
age_over_18 Required Indicates if the individual is over 18.
age_in_years Optional The age of the individual in years.
age_birth_year Optional The birth year of the individual.
family_name_latin1 Optional Latin1-encoded family name.
given_name_latin1 Optional Latin1-encoded given name.

org.iso.23220.photoid.1 data elements

Attribute Required/Optional Description
person_id Optional Unique personal identifier.
birth_country Optional Country where the individual was born.
birth_state Optional State/province where the individual was born.
birth_city Optional City where the individual was born.
administrative_number Optional Audit/control number assigned by issuer.
resident_street Optional Street address of residence.
resident_house_number Optional House number of residence.
travel_document_number Optional Travel document (e.g., passport) number.
resident_state Optional State/province/district of residence.

org.iso.23220.dtc.1 data elements

Attribute Required/Optional Description
dtc_version Optional Version of the DTC definition
dtc_dg1 Required Full MRZ data, base64-encoded string
dtc_dg2 Required Biometric data (e.g., facial image), base64
dtc_dg3 Optional Binary data for Data Group 3
dtc_dg4 Optional Binary data for Data Group 4
dtc_dg5 Optional Binary data for Data Group 5
dtc_dg6 Optional Binary data for Data Group 6
dtc_dg7 Optional Binary data for Data Group 7
dtc_dg8 Optional Binary data for Data Group 8
dtc_dg9 Optional Binary data for Data Group 9
dtc_dg10 Optional Binary data for Data Group 10
dtc_dg11 Optional Binary data for Data Group 11
dtc_dg12 Optional Binary data for Data Group 12
dtc_dg13 Optional Binary data for Data Group 13
dtc_dg14 Optional Binary data for Data Group 14
dtc_dg15 Optional Binary data for Data Group 15
dtc_dg16 Optional Binary data for Data Group 16
dtc_sod Required Security Object Document (SOD), base64
dg_content_info Optional Binary data of DTCContentInfo

8.0 References

  1. EUDI Wallet JSON Schema: ds013-photo-id.json
  3. [ISO/IEC TS 23220-4 (E) Annex C (2024-08-14): Defines the specific data attributes for Photo ID.
  4. ISO/IEC 18013-5: Specifies mobile driving licenses and digital identity display properties.
  5. OpenID4VCI: Draft Specification.
